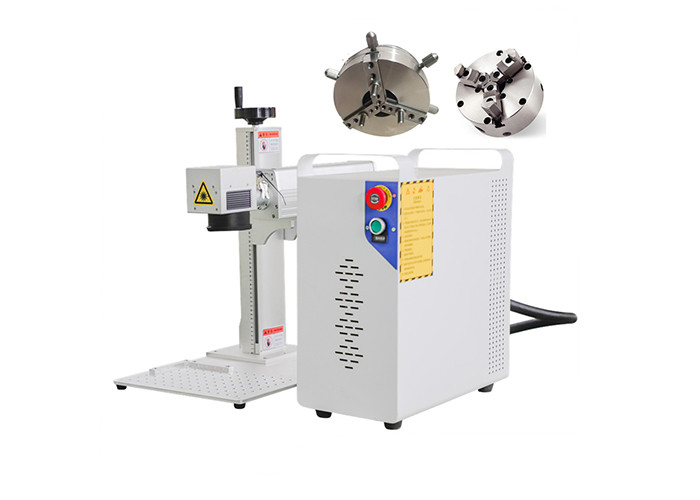

Raycus Source 30w CNC Laser Machines Large Marking Size 200*200mm
Fiber Laser Marking Machine Raycus Source Optional Portable Metal Laser Engraver Laser Cutting Machine
Parameter
Specification for 30w fiber laser marking machine |
| | Power | 30w |
| Laser Brand | Raycus brand |
| Marking Area | 110*110/150*150/200*200mm/300*300mm |
| Galvanometer | Sino-Galvanometer SG7110 |
Main performance parameters | Marking Speed | 7000mm/s |
| Marking Depth | ≤0.5mm |
| Minimum Line Width | 0.012mm |
| Minimum Character | 0.15mm |
| Repeated Precision | ±0.003mm |
| Focus Spot Diameter | <0.01mm |
| Life-span of Fiber Laser Module | 100 000hours |
| | System Operation | Windows XP / W7--32/64bits / W8--32/64bits |
| Cooling Mode | Air cooling--Built-in |
| Voltage | 220V or 110V |
| | Communication Interface | USB |
| Package Dimension | 780mm x 420mm x 770mm |
| Gross weight | 60KG |
Description
Widely used in integrated circuit chips, computer accessories, industrial bearings, watches, electronic and communications products, aerospace equipment, various automotive parts, home appliances, hardware tools, molds, wire and cable, food packaging, jewelry, tobacco and military matters, etc. Marking of domain graphics and text, as well as high-volume production line operations
Advantage
1, China famous brand Raycus source laser power 30w, big marking size.
2, Sino galvo, high precise, good quality.( 110*110mm /150*150mm/200*200mm optional )
3, JCZ main board, free software ( support English , Japanese, Korea ). software version ( Ezcad 2.7 ).
4, Support win7/win8 ( 32 bits, 64 bits ). voltage 110v/220v optional.
5, Factory direct sale, price cheap.3 years warranty !
Product detail
FAQ
Q1: How can I get the best machine for me?
A1: You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your needs or not. Then we can give you the best machine depends on our experience.
Q2: This is the first time I use this kind of machine, is it easy to operate?
A2: We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software. Or we can talk by phone, email or other contact ways.
Q3: If the machine has problem in my place, how could I do?
A3: The machine has two years guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. We could send free parts to you in warranty period if machines have any problem under "normal use".
Q4: This model is not suitable for me, do you have more models available?
A4: Yes, we can supply many models, such as portable fiber laser marking machine, table fiber laser marking machine, enclosed fiber laser marking machine, CO2 laser marking machine, UV laser marking machine and so on. Replacement of some part based on your need. The above are most popular. If it can not meet your requirement, then tell us. We have the ability to make specially according your requirement!
Q5: How long is the delivery time?
A5: In order to ensure the quality of products, so that customers receive high-quality laser machines. Our company has strict process of materials incoming inspection, puting in storage, materials picking, machine production, quality inspection, warehouse-out inspection. For standard machines, it would be 3-7 working days; For non-standard machines and customized machines according to client's specific requirements, it would be 15 to 30 working days.
Q6: How's the payment?
A6: We accept Telegraphic Transfer(T/T). 30% in advance, pay the balance before delivery. You can make the payment on Alibaba Trade Assurance.
Q7: Do you arrange shipment for the machines?
A7: Yes, we have freight agents for sea shipping, air shipping. If you choose our freight agents, you just need to pay the shipping cost to us, our freight agency will arrange the shipment for you. Of course you can choose your own freight agency to arrange shipment, we will prove you the EXW price, your freight agency need to pick up the machine from our factory.
